Following the introduction of the "Dual Carbon" goals, heating companies face not only pressure to reduce emissions but also a new pathway to convert energy savings into economic gains. In the past, high heat loss in distribution networks meant burning more coal or consuming more gas; every unit of lost heat represented an operating cost. Today, the reduction in carbon emissions achieved by lowering heat loss can yield direct returns in the carbon trading market. For heating companies managing large service areas with aging infrastructure, this presents a compelling economic proposition worth careful calculation.
The industry average heat loss rate for centralized heating networks in my country is approximately 20%, significantly higher than that of developed nations. Heat loss primarily occurs at three points: degradation or failure of insulation layers; water ingress or cracking at pipe joints; and inadequate insulation coverage on irregular components such as valves and elbows. Take direct-buried pre-insulated pipes as an example: if the outer protective casing is damaged or the polyurethane foam becomes damp, thermal conductivity can surge from 0.024 W/(m·K) to over 0.05, effectively doubling the heat loss. In other words, vast amounts of heat are dissipated before reaching the end-user; the carbon emissions associated with this lost heat represent an asset that can be "recaptured" and traded.
The process of realizing carbon revenue is straightforward. After heating companies implement energy-saving retrofits or precision maintenance on their networks, a third-party agency quantifies the energy savings resulting from reduced heat loss and converts them into carbon emission reductions. These reductions are then verified and listed for trading in accordance with local carbon market regulations. Currently, carbon allowance prices in various domestic pilot cities remain stable at between 50 and 80 yuan per ton. Consider a 20-kilometer main pipeline: a 15% reduction in overall heat loss could cut annual carbon emissions by approximately 2,000 tons, generating between 100,000 and 150,000 yuan in carbon revenue alone. Meanwhile, the savings on gas or coal costs remain with the company, effectively creating a dual revenue stream.
Successful examples of this approach already exist in actual projects. After Wuxi Xinlian Thermal Energy upgraded its aging heating network, heat loss was reduced to below 110 watts per square meter, resulting in annual savings of over 5,000 tons of standard coal and a corresponding reduction in carbon emissions of more than 10,000 tons. Meanwhile, in Haiyan, Zhejiang, the first transaction involving certified emission reductions (CERs) under the "Carbon Inclusive" scheme for nuclear heating was completed, with a zero-carbon heating company transferring 104 tons of CO2 CERs to an enterprise.

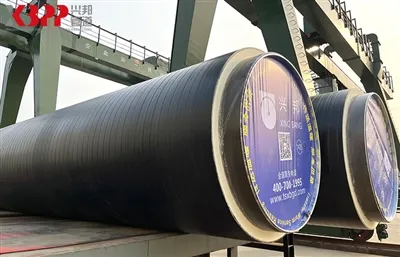

For aging networks in operation for over a decade, the primary issue is the settling and cracking of insulation layers; replacing the entire system with prefabricated, direct-buried pipes-featuring polyurethane foam insulation and high-density polyethylene (HDPE) outer casings-can immediately bring heat loss back below design specifications. For relatively newer networks, the focus should be on inspecting insulation "blind spots" at pipe joints and valve chambers; employing standardized joint-sealing techniques and precision wrapping for irregular components offers significant heat-loss reduction at a low cost. Carbon-related gains are not merely a distant policy concept, but a tangible return realized with every joule of heat loss prevented. By accurately calculating these figures, heating companies can achieve genuine economic benefits alongside energy conservation and carbon reduction.
