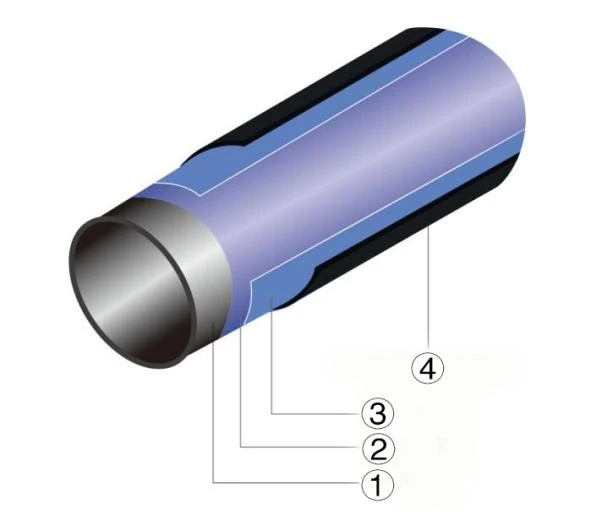

①Steel Pipe
②Epoxy Powder
③Adhensive
④High Density Polyethylene
Advantages of oil anti-corrosion pipe:
1. The bond property between anti-corrosive coatings is strong and the integrity of the pipeline is high.
2. The coating has the advantages of uniform coating, good adhesion, and high toughness.
3. Strong stress cracking resistance and high impact resistance;
4. Good environmental protection and convenient local maintenance
5. Strong stability; service life can reach more than 50 years
6. High sealing performance and strong insulating property
7. The anti-chemical corrosion and the water-proof properties are strong and the aging resistance
Specification of Anti-corrosive Coating Thickness
|
DN(mm) |
Epoxy powder (μm) |
Adhesive layer(μm) |
Minimum thickness on the coating(mm) |
|
|
Common level(G) |
Strengthen level(S) |
|||
|
DN≤100 |
≧120 |
≧170 |
1.8 |
2.5 |
|
100﹤DN≤250 |
2.0 |
2.7 |
||
|
250﹤DN﹤500 |
2.2 |
2.9 |
||
|
500≤DN﹤800 |
2.5 |
3.2 |
||
|
DN≥800 |
3.0 |
3.7 |
||

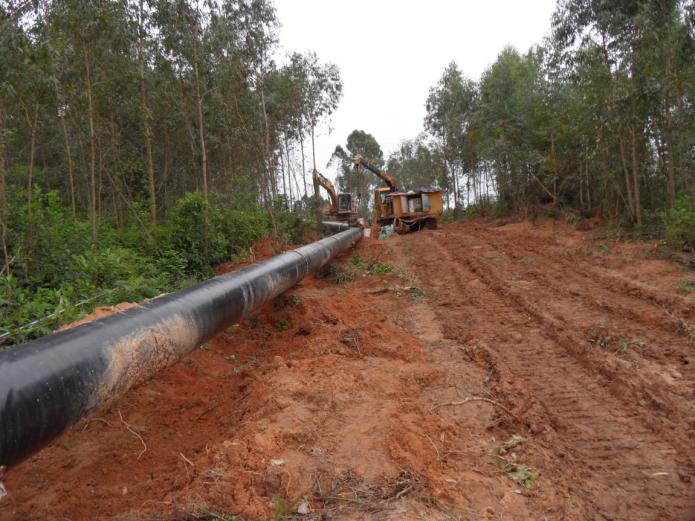

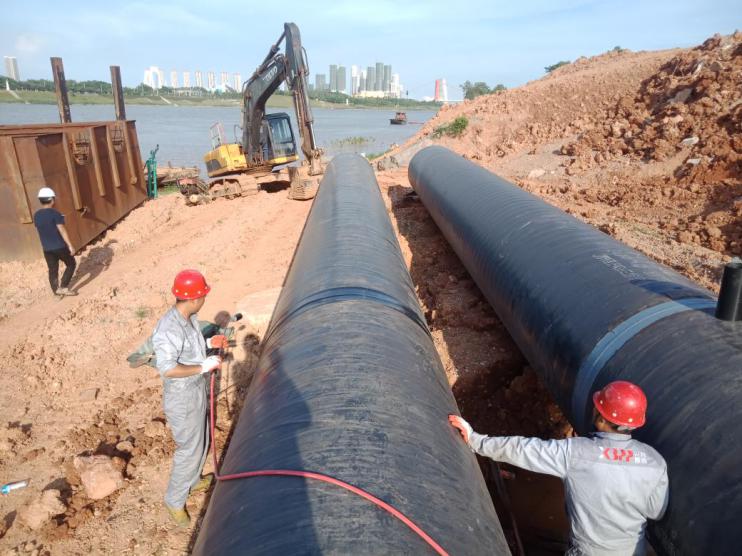

Classic case:
1. Project name: Guangxi Zhong Energy Saving Building Energy Saving Co., Ltd. Anti-corrosion Pipeline Project.
Product: 3PE anti-corrosive pipe
Anti-corrosive level: Strengthen level
Engineering quantity: 2488 meters
2. Project name: Jilin natural gas project.
Product: 3PE anti-corrosive pipe
Anti-corrosive level: Strengthen level
Engineering quantity: 8476.33 meters
Xingbang Pipeline is well aware that every detail in the transportation process may affect the presentation of products and customer satisfaction. Therefore, we focus on the transportation safety and quality assurance of our products, striving to do every step well.
In order to ensure the safety of oil anti corrosion pipe during transportation, a series of meticulous protective measures have been taken. During oil anti corrosion pipe loading stage, protective measures should be taken on the large vehicle to ensure that the product can be firmly fixed in the carriage, avoiding damage caused by shaking or collision during transportation.
However, despite preparation, there may still be some unforeseeable situations in complex transportation environments, such as minor bumps during on-site lifting. Xingbang manufacturers also have a comprehensive response plan for this. We have a patch repair team who can accurately repair the damaged area in the first time, ensuring that the product is restored to its original state without affecting its appearance or reducing its quality. This timely and effective on-site handling capability not only reduces the additional cost of returns, but also wins the praise and trust of customers.
